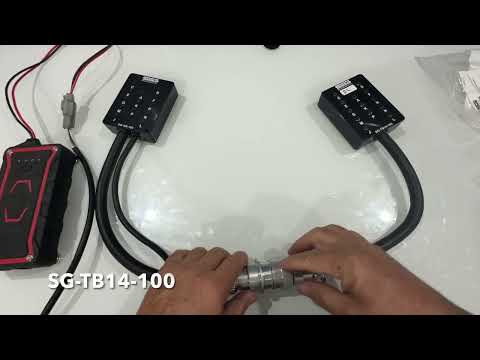

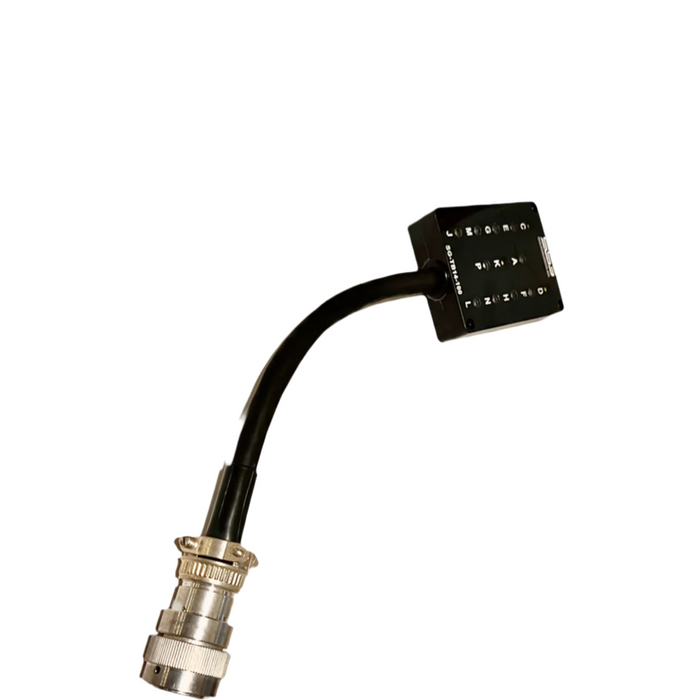

Introducing our custom designed 14 pin machine output test box for all 14 Pin Deutsch HD series equipped skid steer loaders. I made the first one of these over 20 years ago for my own personal use to troubleshoot machine controls. Most of the manufacturers did not include instructions on which button does what on their machines so I had to figure it out on my own.

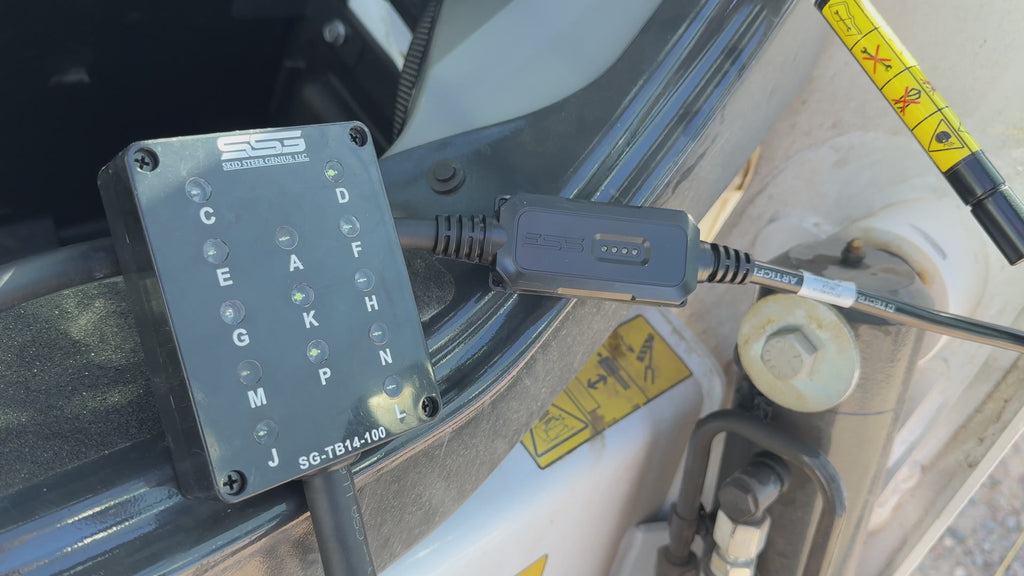

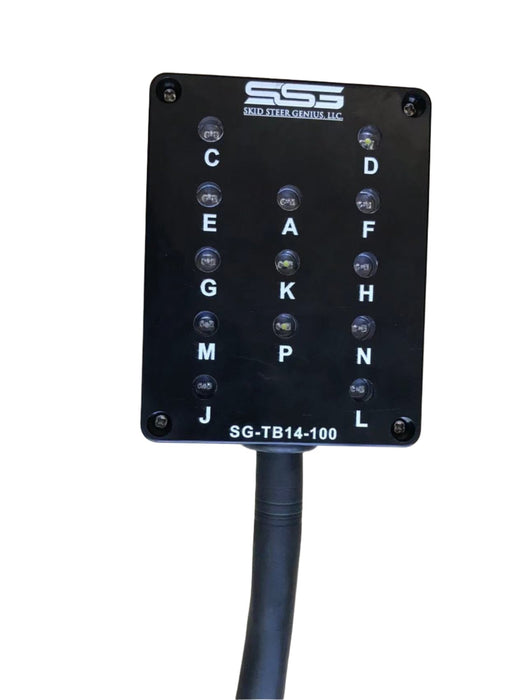

Using this test box made it much faster for me to figure out if the machine controls were working and how they were mapped to the buttons in the cabs. It maps every pin in the standard 14 pin connectors installed on all modern machines. So many times I was able to show the dealers that the machine was at fault and not my harnesses. This is an awesome tool to own and I highly recommend one in your toolbox if you are a hard core skid steer guy like myself.
Works with the following machines:
- Old Bobcat 14 Pin - Not the new CAN 7 pin
- Case
- Gehl/Mustang
- Cat D-Series
- Kubota
- New Holland
- Takeuchi
- Yanmar
- Some new ASV's using 14 pin
- Manitou
- Develon
- Hyundai

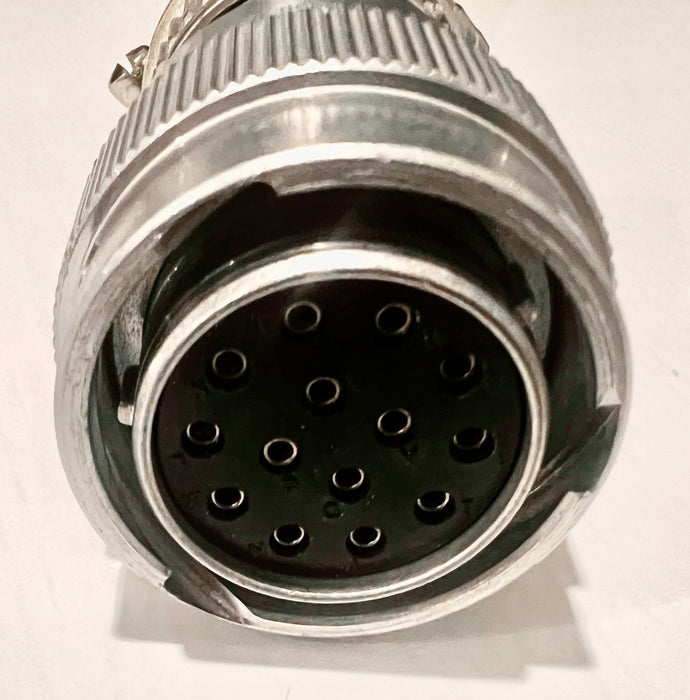

John Deere - It will work with John Deere by moving the ground wire by completing the following. Open the 14 pin connector from the back, remove the wire located in pin A. Remove the black wire located in pin B and slide it into pin A. The wire that was located in pin A will no longer be used when you are testing John Deere machines because they use it as a ground.
It's an essential tool for shops or people who just want to troubleshoot their machines and know how their controls operate.
