Electrical Adapter | Multiplexer - 4 Input/10 Output | SG-CT6-BC10 | Skid Steer Genius

PLEASE READ!  This is a specialty harness that in conjunction with our SG-ASW-200 controller will allow you to add up to 4 additional controls to your machine.

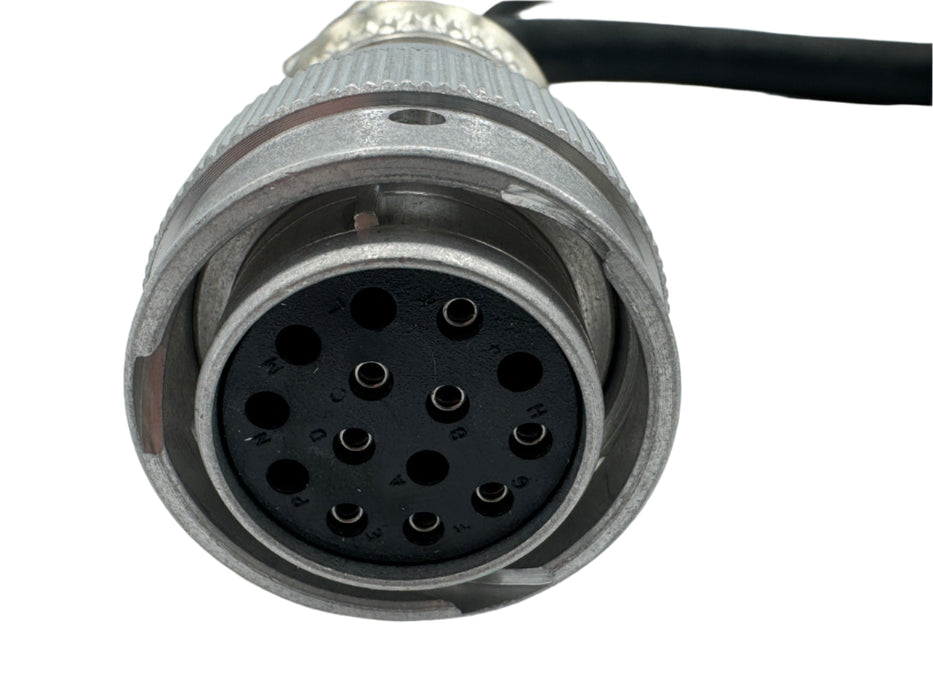

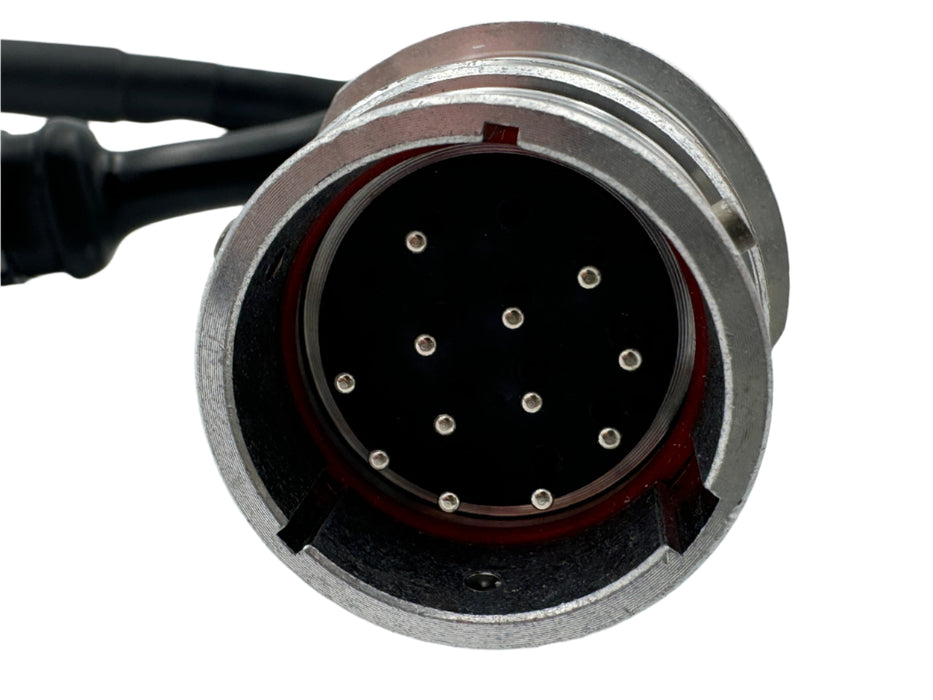

Just plug one end into your 14 pin equipped Cat D Series 255/265 Loader and plug the pig tail into the ASW controller and you will now have up to 10 functions with two of them being locking.  This is all output through an industry standard wired 14 pin connector.  The following outputs are added to your existing 14 pin connection when you use this harness.

L & M - Latching

G & H - Momentary

You can re-pin the outputs for specialty operations using the supplied pinning tool.

This is another Genius product.  The best ideas at the best prices.

*Note:  Does not work with any other brand or model of machine.  See notes below.

CAT D-Series Notes:  Use of this adapter will work with Cat as long as you understand the following.  Pin K will not be +12 volts because Cat uses that pin as a ground sense for high flow operation.  Pin A will be operated from your switch panel and not the machine control.  High flow jumper is not installed.

Note:  The most likely operation of this will be for operating a grader with laser functions like a 96/108" Bobcat grader.
