NEW FOR 2024. A 12 channel output controller for Bobcat Pilot Controlled machines only. No other machines have enough buttons to be able to use this.
Accepting orders for delivery in late September 2024. If you cannot wait for this product, please do NOT order it.
CLICK HERE FOR THE INTRODUCTION VIDEO
The CAN100 uses industrial drivers and processors which have several sources and are easy to get so our shortages will soon be over.
We have also changed manufacturers who are able to assemble these in a much more robust and efficient manner.
The CAN100 Features Include:
- Software guaranteed to operate 12 controls on all Bobcat machines which include Pilot Control only. Hand/Foot Control, Toolcat, Versahandler and now the Imported Bobcat machines from the Czech Republic up to 6 controls only. If you have pilot controls, it will operate up to 12 controls. Control #11 and #12 are on the right pump control toggle so there may be interference with some hydraulic operations.
- A molded plastic housing with extra cable retention. NO MORE RESIN, YAY!
- Cable retention whereby the connectors will tear off first if you have an accident, so it can be repaired.

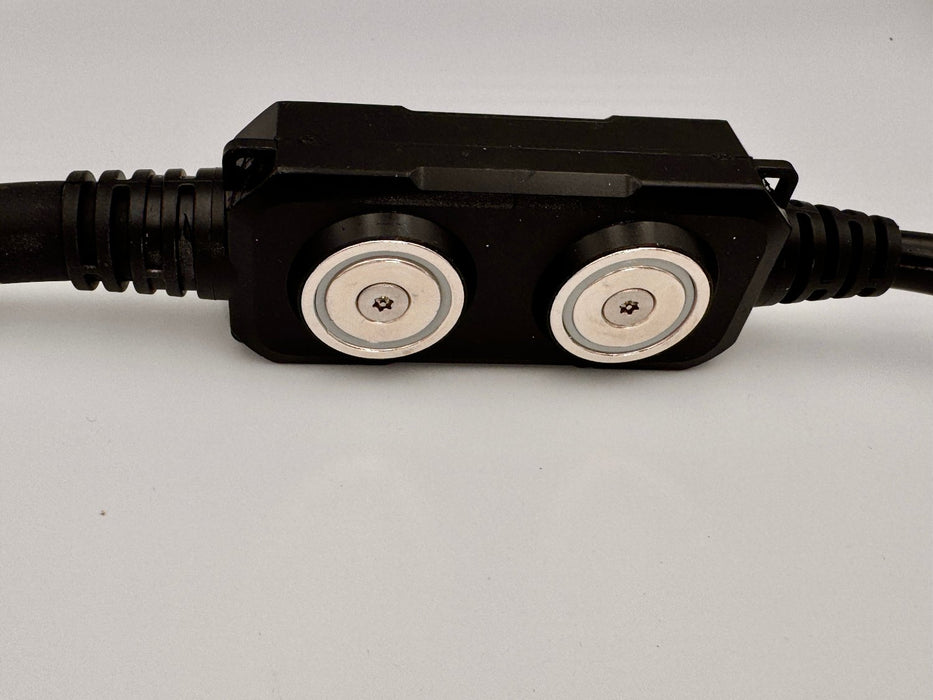

- Embedded 2 x 125 b. magnets to hold it onto your machines frame in multiple locations.
- Higher and lower temperature tolerance.
- 9 Amp output per channel which is regulated to 15 amps max to protect your machines fuse.
- 4 x channels can be programmed to latch. C,D (A1/A2) plus right pump control.
- Latching programming has been simplified.

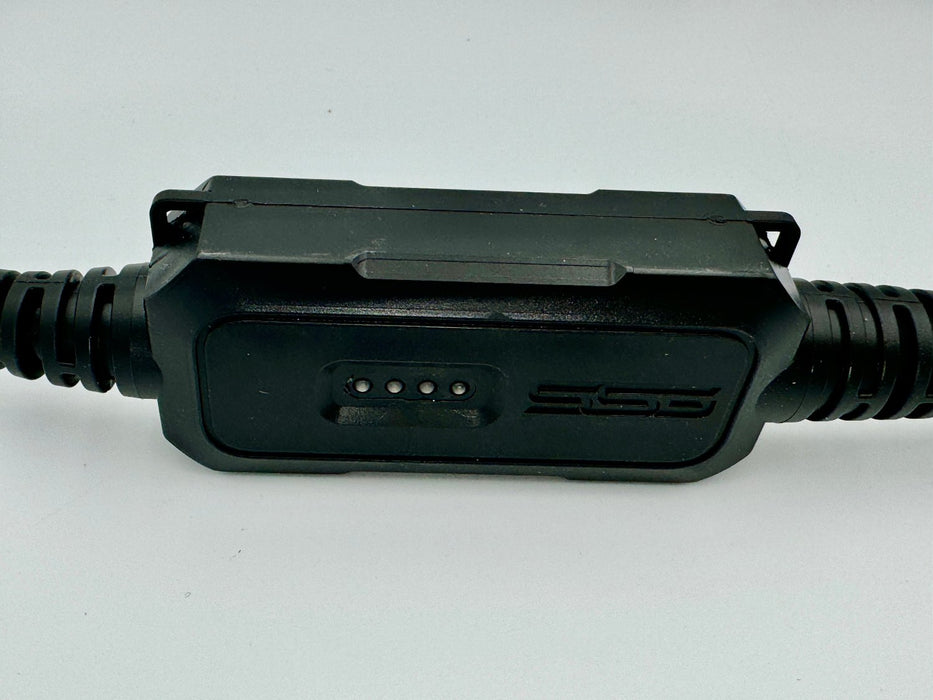

- A more common sense LED output makes it easy to see what is going on with the controller.
- Extra output protection from Chinese dirty solenoids.
This is a true Genius Controller designed for solenoid controls only.

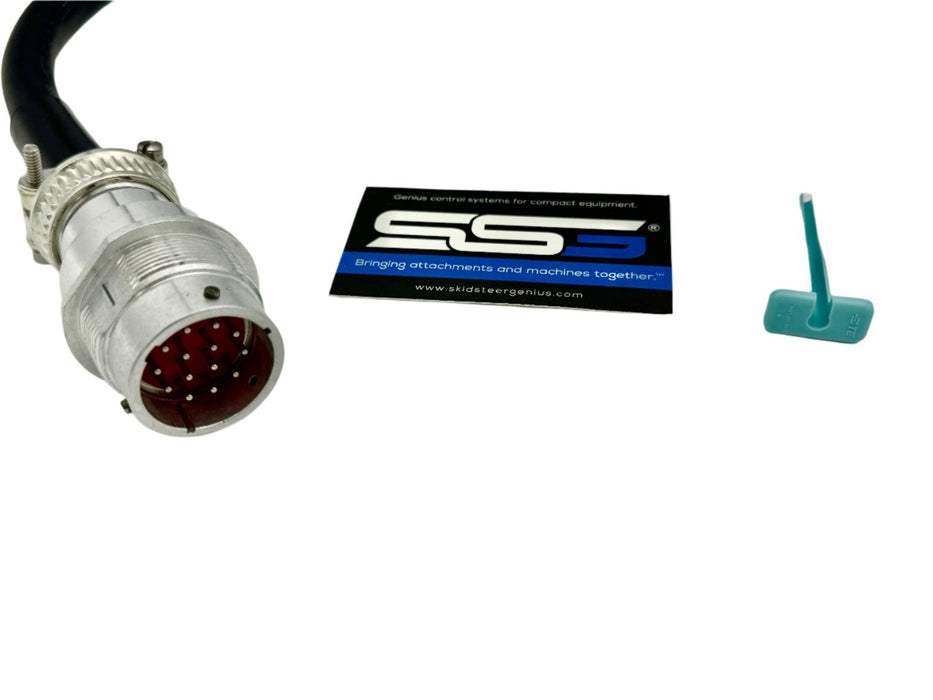

The CAN100 is an up to 12 output controller with a 14 pin connector pinned the old fashioned way. Using the old Bobcat 14 pin layout which works with Takeuchi, Gehl, Kubota, Mustang, Case, New Holland attachments up to 12 controls plugs K pin power.
Cat D-Series requires moving the pins G to A and H to J. If your attachment is set up for high flow, you will need to push the K pin back so the HF sense is not connected. This is a ground wire in Cat attachments whereby it is a +12volt in Bobcat so you will blow your fuse if you leave it connected.

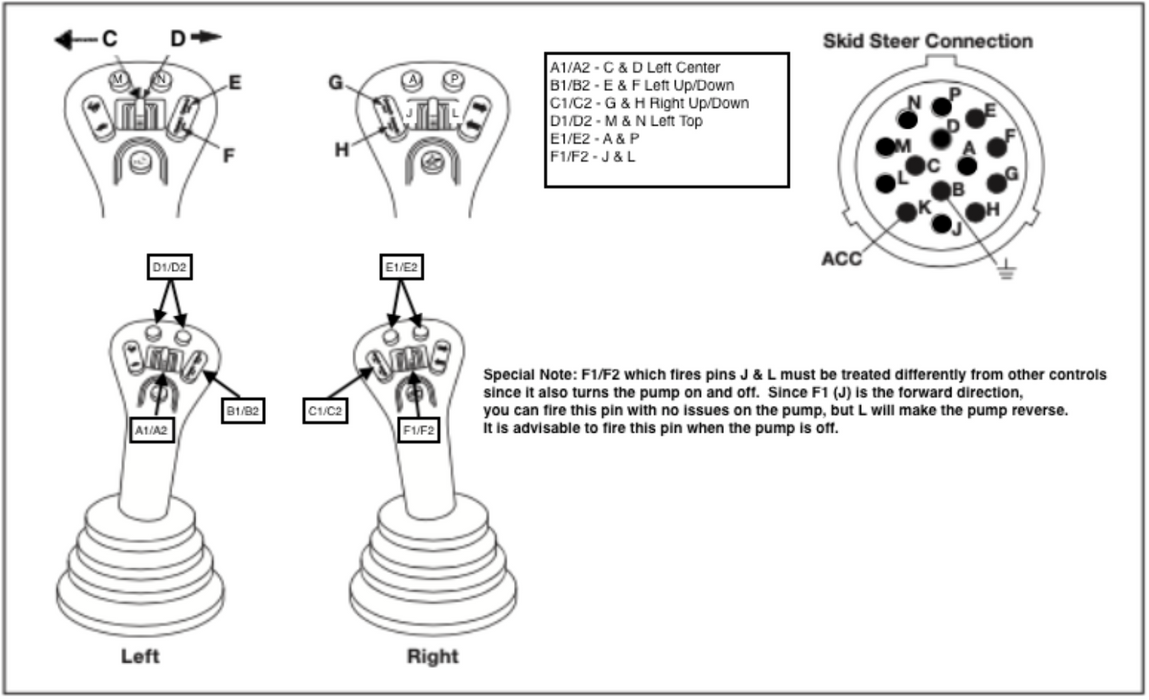

Outputs include:
-
- A1/A2 - Pin C/D one or both can latch while the others will remain momentary.
- B1/B2 - Pin E/F momentary only.
-
C1/C2 - Pin G/H momentary only.
- D1/D2 - Pin M/N momentary only.
- E1/E2 - Pin A/P momentary only.
- F1/F2 - Pin J/L one or both can latch while the others will remain momentary. F2 Pin L will operate the hydraulic pump in reverse.
- B - Ground & K is constant output.
Because of fuse and circuit limitations, any combination of 2 will work at the same time. If you try to make three latch, the circuit will reset and you will have to reprogram the adapter. This adapter ships with all outputs set up for momentary only.

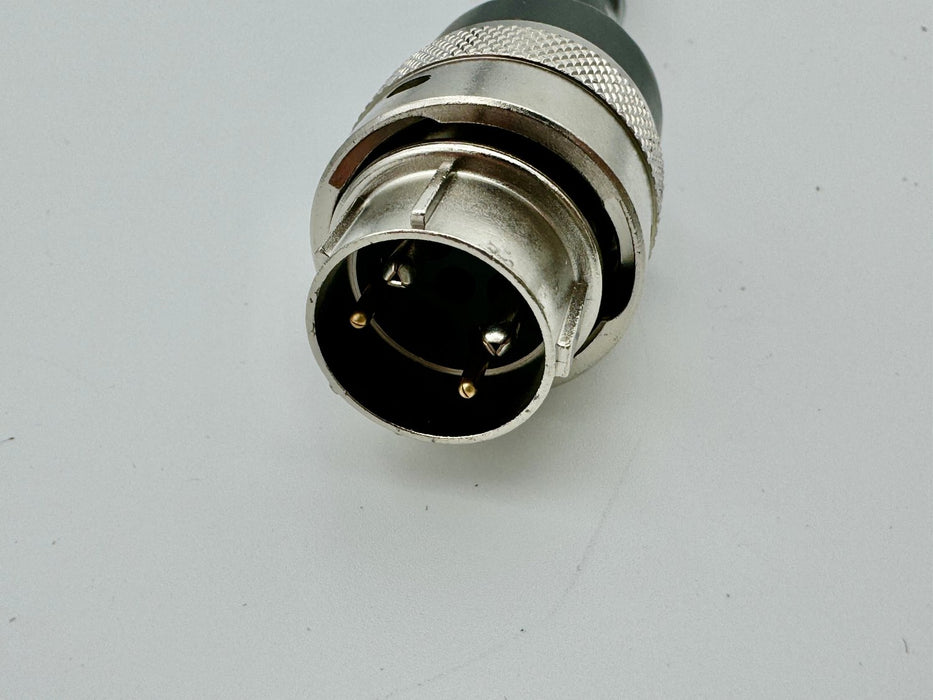

This adapter is specially designed to plug into any Bobcat® 7 Pin connector and allow the operator to run up to 12 x 12 volt solenoids directly from the stick controls of your Bobcat®. Works on Bobcat® skid steer loaders as well as Toolcat and Versahandler machines (up to 6 controls).

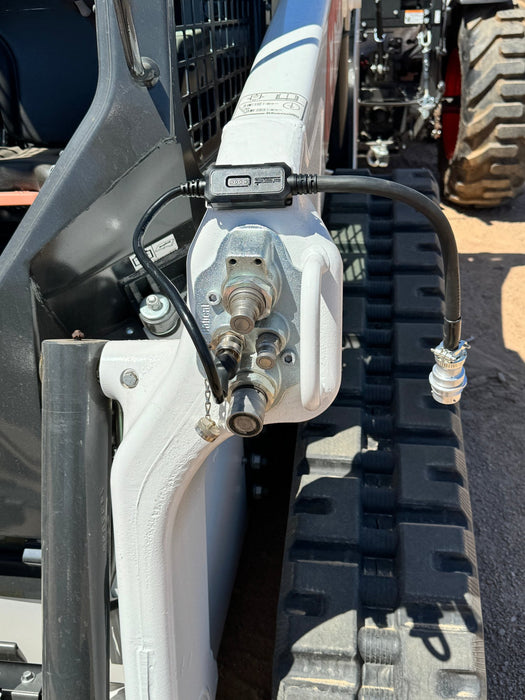

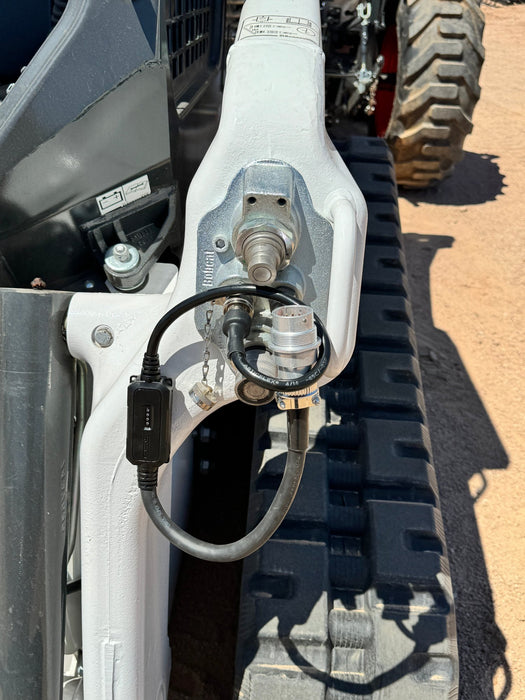

Takes about 1 minute to install. It is 100% plug and play. This configuration is for boom mount so you can use it over and over on any attachment that has up to 6/12* solenoids to control. This is complete and ready for plug and play directly into any Bobcat® branded machine. It has power, communication, and a port status indicator LED to show you that it is working and that it is receiving commands from the Bobcat® machine.
Throw away the crappy control box that the manufacturers supply and switch over to true machine controls.
How to program:
Channels C & D J & L ship as momentary controls but if you would like them to operate like a locking switch you can program each one individually to latch. With the key off, select either A1/A2 or F1/F2 and hold it down while you turn on the machine. Continue to hold for 5 seconds until you see the LED's flash. It is now programmed and ready to go.
CLICK HERE TO DOWNLOAD THE USER MANUAL
Or scan this QR
Bobcat 2020+ Versahandler 923 - DOES NOT WORK WITH THIS MODEL BECAUSE IT DOES NOT HAVE AN ACD CONTROLLER.
